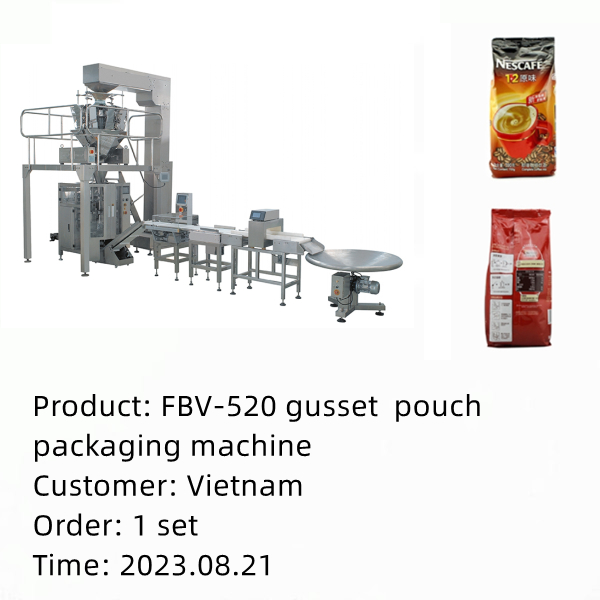

FBV- 520 gusset pouch form fill seal machine with 14 heads weighing scales exported to Vietnam for packing konjac jelly sachets
General instructions of machine:

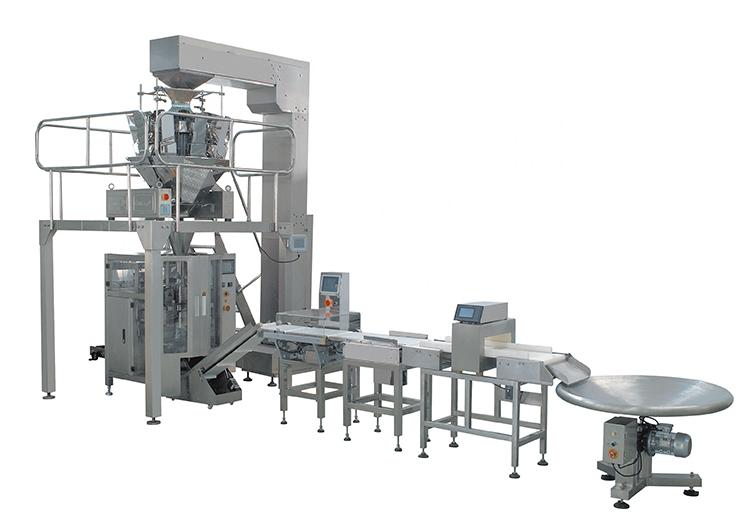

FBV-520 VFFS gusset pouch form fill seal machine are suit for packing powders, solid products by equipping related dosing filling system. in thhis case, we use 14 heads weighing scales as filler. full automatic system including: lifting conveyor, dosing filler, support platform, main enginee packing machine, output conveyor, checkweigher
Functions of packing system including:
1. automatic lifting products from ground to dosing filler
2. 14 heads weighing scales for dosing products by weight
3. support platform for isolating 14 heads weighing scales from packing machine, reducing vibration effective by packing machine.
4. FBV-520 packing machine including functions: form fill seal, punching hole on pouch, date printer, sides sealing, gusseting device etc.
5. output conveyor to take finished products from output position of packaging machine
6. checkweigher machine for detecting weight of final products, wrong weight bags will be pushed out
FBV-520 gusset pouch packaging machine equipped with 14 heads weighing scales for packing products such as: wrapped candies, biscuits, grains, nuts, spices, frozen chips. puffed food and regular shape products.
What shape of pouches can be made by FBV-520 VFFS packaging machine?
FBV-520 automatic VFFS pouch packing machine is customized to make normal pillow pouches, gusset pouch, stand up pouch, 4 sides sealed pouch, pouch with punching hole, pouch with nitrogen filler, vacuum packages etc.
MODEL OF PACKING MACHINE | FBV-420 VFFS PACKING MACHINE | FBV-520 VFFS PACKING MACHINE | FBV-620 VFFS PACKING MACHINE | FBV-820 VFFS PACKING MACHINE |
BAG SIZE |
width: 60-200 mm length: 60-230 mm |
width: 80-250 mm length: 100-300 mm |
width: 100-300 mm length: 100-380 mm |
width: 110-400 mm length: 100-450 mm |
PACKING SPEED | 50-100 bags/minute |
50-100 bags/minute |
50-80 bags/minute |
20-50 bags/minute |
WIDTH OF FILM | 140-420mm | 180-520mm | 220-620mm | 340-820mm |
AIR CONSUMPTION | 0.36 M3 |
0.36 M3 |
0.4 M3 |
0.7 M3 |
POWER | 220v/380v/440v |
220v/380v/440v |
220v/380v/440v |
220v/380v/440v |
DIMENSION OF PACKING MACHINE | 1430*970*1600mm | 1550*1160*1600mm | 1600*1260*1680mm | 1600*1500*2050mm |
