Scope of application
Applications:

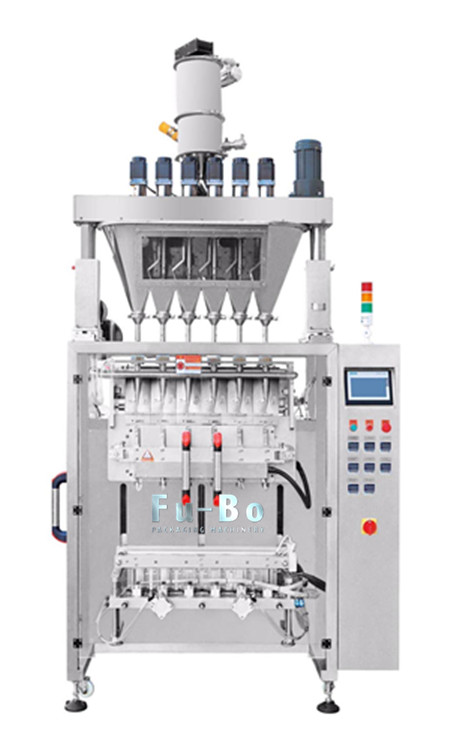

Multilane powder packing machine, suitable for powder, such as coffee powder, medicine powder, health powder, and etc
package samples:
Features & Mechanical Character : All parts that come into contact with goods of food character are made of stainless steel AISI 304 (upon a special request also in AISI 316L). The Coffee powder packaging machine is possible to combine with other optional accessories, further handling (cartoning station, carton box, completion etc.)

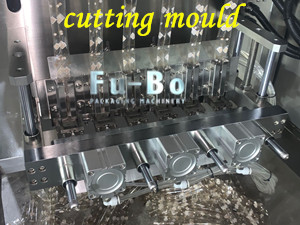

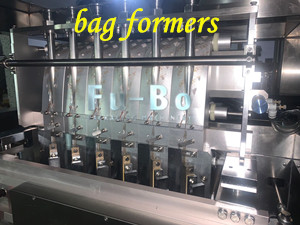

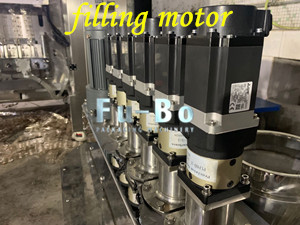

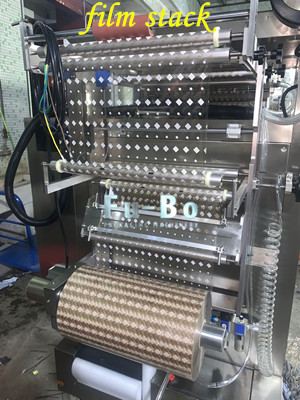

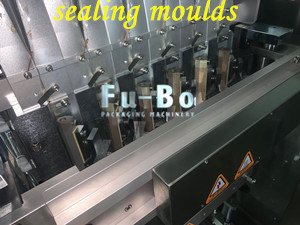

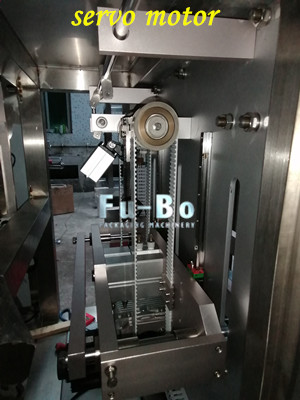

Details pictures of machine:
Technical Specification : |
Model |
FBV-480SY |
FBV-720SY |
FBV-960SY |
|
Measuring |
auger filler/scales filler/cups filler etc. |
||
|
Bag Shape |
4 Sides Sealing/back sealing |
||
|
Packing Speed |
25-45 sticks/min/lane ( 2-12 lanes are available) |
||
|
Max Roll Film Width |
480mm |
720mm |
960mm |
|
Bag Length |
50-120mm |
||
|
Bag Width |
30-60mm |
30-90mm |
30-120mm |
|
Machine Dimension(L*W*H) |
950*1470*1750mm |
1153*1654*1750mm |
1415*1686*2130mm |
|
Weight |
300KG |
400KG |
500KG |
|
Power |
220V/380V,50/60HZ, 2.8KVA |
220V380V,50/60HZ, 4.1KV |
220V/380V,50/60HZ 5.5KVA |
FU-BO is your right choice
