PRODUCT

Scope of application

Application

All kinds of small granules material

Applicable packing materials: rice, peanut, seeds, sesame, nuts, sugar, salt, detergent powder, small granules

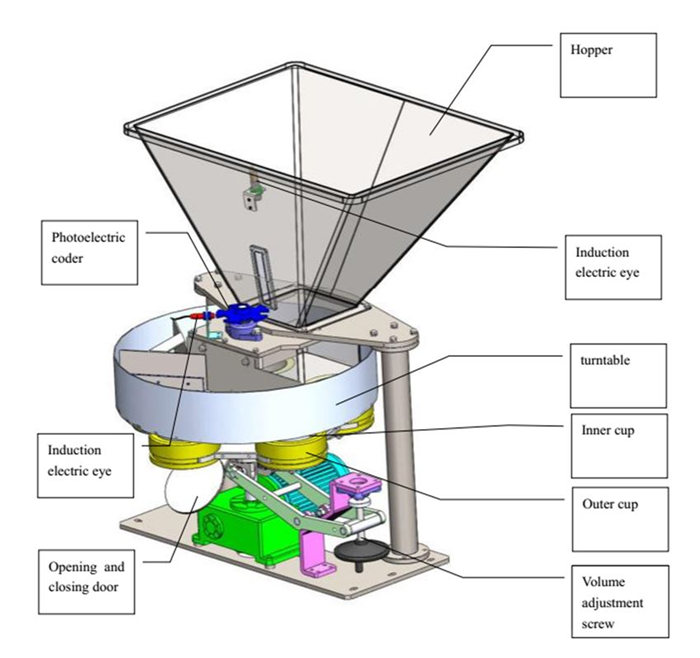

Features & Mechanical Character :

4 or 6 adjustable cups

All parts in contact with products are stainless steel.

Adjustament be made manually by turning the handwheel

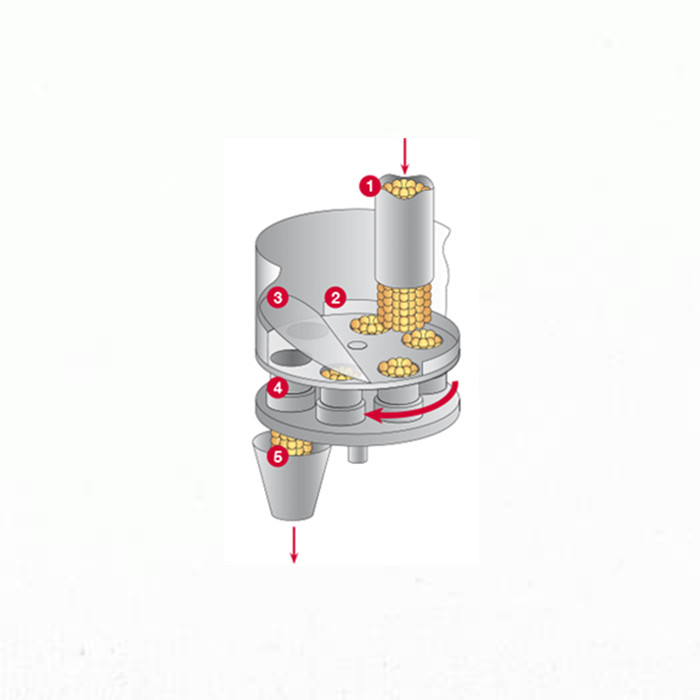

Sliding trap doors controlled by closed cam

Stationary or rotating brushes (depending on product) level product across top of cup.

Cups volumes up to ±30% mid-volume.

Technical Specification :

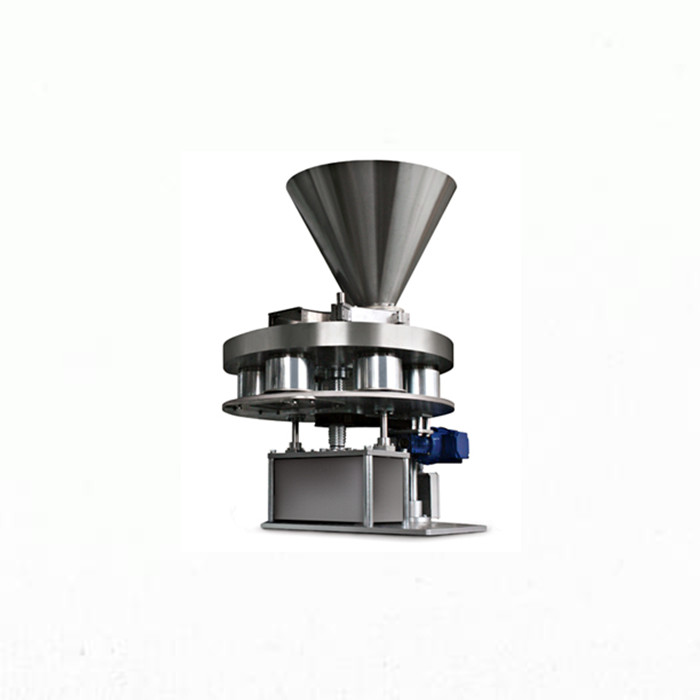

Name: Volumetric cups filler

Model: FB—3-CF500

Filling range:150-500ml (By changing cups)

Filling adjustable: 30%

Filling speed: up to 80bpm

Frame structure: SUS304

Parts contacted products: SUS304

Control parts: Motor & Transducer

Weight: 180Kgs

Packing size: 900x1100x1200mm
