Wet Cat Food Bag Sorting Machine: 1. Automatic sorting and output; 2. Removal of stacked bags; 3. Bag orientation detection and bag flipping; 4. Bag orientation adjustment; 5. Bag counting and collection; 6. Bag packing into cartons.
Sorting machine + customized rejector + counting collecting machine + premade bag packing machine. It is suit for the following products: snack sachets, rice bar sachets, 3/4-side seal sachets, etc.
Vertical double-line jelly sachet packaging machine completes feeding, dosing, bag forming, filling, sealing and cutting automatically. Supports single or dual-lane packaging with independent operation.
FBV-50YD irregular shaped bag packing machine forms bottle-shaped pouches through custom die cutters. It is suitable for packaging energy gel, liquid coffee, shampoo, syrup, sauces and various liquid cosmetics.
VFFS triangular jelly sachet package machine integrates forming, filling, sealing, die cutting, date coding, internal mixing and heating processes. It achieves high packaging efficiency and reliable sealing quality.
Automatic 4-head weigher packaging machine has been successfully exported to Côte d’Ivoire, Africa. It features gusseted bag making function and realizes automatic quantitative packaging for 2kg washing powder.
FBV-300SY irregular shape sachet fruit beverage packaging machine realizes automatic metering, filling, bag forming, sealing, coding, shape cutting. Custom filling meters are optional for different materials.
Liquid packing machine shapes round-corner stick bags. It adopts pump quantitative feeding to finish forming, filling, sealing and cutting automatically, fit for honey, coffee liquid, beverages and other liquid goods.
Custom-shaped sachet packaging machine for energy gel supports interchangeable cutting dies to produce various sachet shapes per customer requirements. Suits coffee liquid, juice, honey and other liquid products.

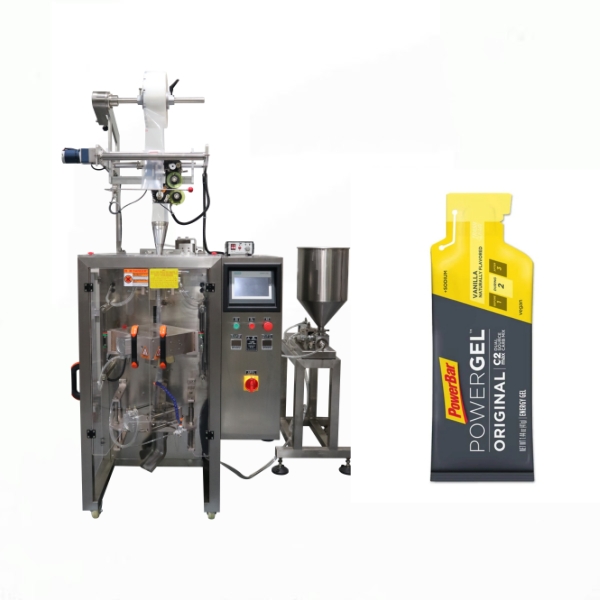

FBV-300SY Shape Sachet Packaging Machine Structure:
1. Liquid Metering and Filling Pump: Customized pumps can be configured based on material properties. It ensures precise metering and high packaging efficiency, while effectively prolonging the machine’s service life.
2. Main Functions of the Packaging Machine: It automatically stretches the film and achieves bag forming through a forming device. The machine controls the temperature of the sealing block to guarantee tight, uniform bag seals.
3. Shape Cutting Tools: Cutting tools can be customized into various shapes, including straight cutters, zigzag cutters and special-shaped cutters. Easy-tear notch devices are also available as an option.
Vertical and horizontal sealing
Pulling film servo motor
Liquid hopper and pump

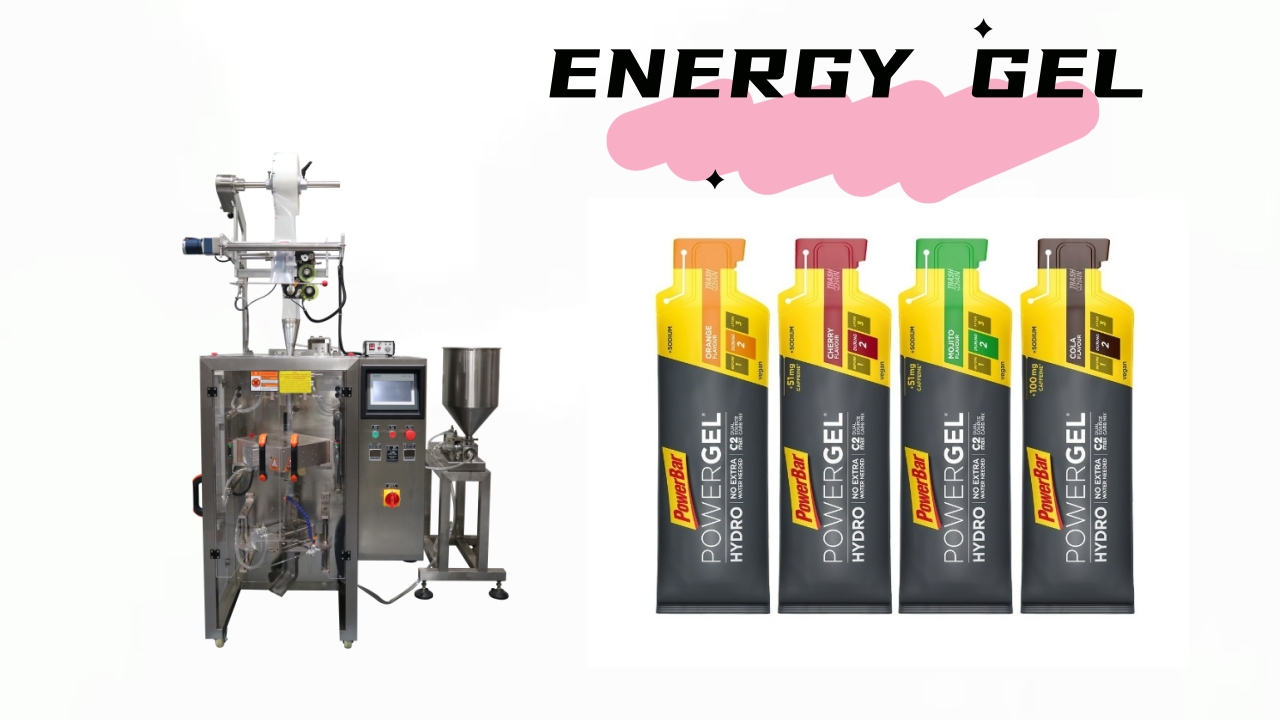

FBV-300SY irregular shape sachet packaging machine is suitable for the food & beverage, pharmaceutical and cosmetic industries. It is designed for packaging liquid products, including energy gel, shower gel, juice, honey, enzyme beverages, cooking oil and concentrated fruit juice.
VFFS liquid packaging machines are capable of producing irregular sachets in diverse designs. All sachet styles can be fully customized to meet customer requirements, delivering products that are more aesthetic, eco-friendly and user-friendly.
| Type of machine | FBV-300SY Irregular shape sachet VFFS packing machine |
| Packing speed/minute | 25-50 bags/minute |
| Packing dimension | Width:20mm-150mm; Length:30mm-180mm (note: usually filling volum 10-100mls) |
| Diameter of package roll | Max 450mm |
| Power | 110v/220v/380v customized |
| Weight | 300 kgs/set |
| Size of machine | 1000*750*2300mm |
As a professional packaging machinery manufacturer, Shanghai FU-BO Packaging Machinery Co., Ltd.
has well-equipped testing facilities, strong technical force, provide customers with a variety of packaging machinery solutions.
Shanghai FU-BO Packaging Machinery Co., Ltd. is a manufacturer of automatic packaging machinery with well-equipped testing facilities and strong technical force.
