Wet cat food bag sorting machine: 1. Automatic sorting and output; 2. Removal of stacked bags; 3. Detection of bag orientation bag flipping; 4. Adjustment of bag orientation; 5. Counting and collecting bags; 6. Packing bags into boxes.

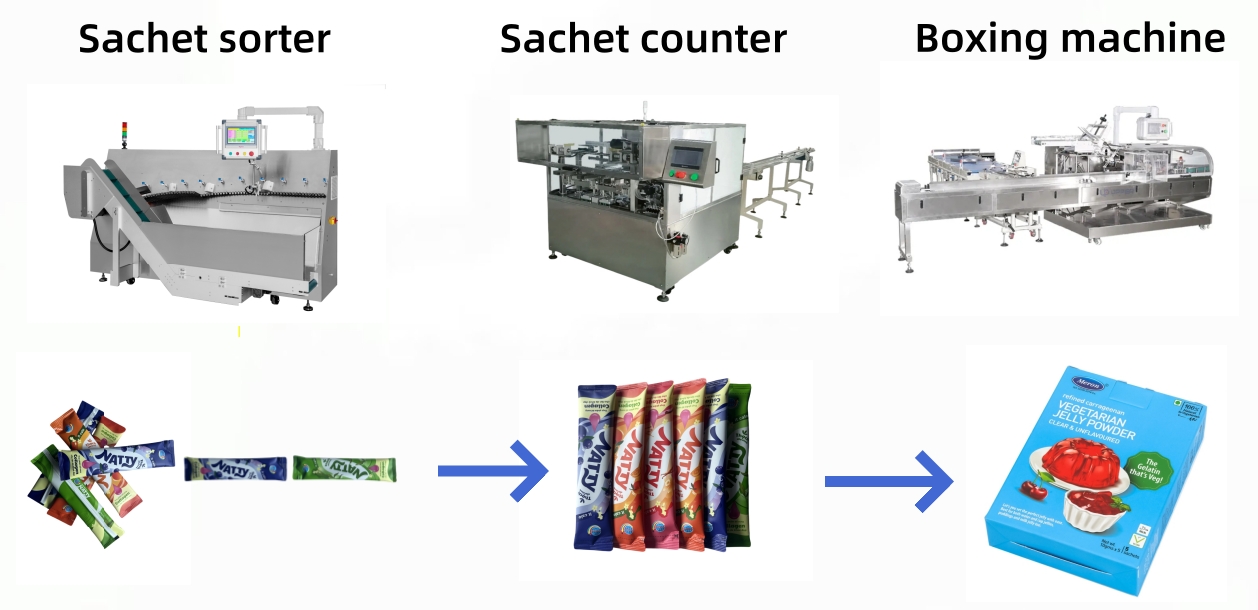

Sorting machine + customized rejector + counting collecting machine + premade bag packing machine. It is suit for the following products: snack sachets, rice bar sachets, 3/4-side seal sachets, etc.
VFFS double-line jelly bag packing machine can automatically complete the bag-making process, including feeding, metering and filling, bag forming, date printing, sealing, shape cutting, and finished product output.
FBV-50YD irregular shaped bag packing machine can automatically complete process such as feeding, bag forming, metering, date printing, filling, sealing, die-cutting, and counting.
VFFS jelly triangle sachet packing machine features functions such as forming, filling, sealing, die-cutting, date printing, in-can mixing, and heating. It offers high packaging efficiency and excellent bag sealing.
4-head scale packaging machine has been exported to Côte d'Ivoire, Africa, and can produce corner-insertion bags. It can package 2kg of powders such as: washing powder, milk powder, and wheat flour.
4-head scale packaging machine has been exported to Côte d'Ivoire, Africa, and can produce corner-insertion bags. It can package 2kg of powders such as: washing powder, milk powder, and wheat flour.
Granule packing machine can automatically complete feeding (z-type elevator), weighing, filling, bag forming, sealing and finished product output. It is suit for packing potato chips, biscuits, popcorn, etc.
Multi-head weigher candy packaging machine is suitable for packing granular products, producing gusset bags with punched hole. Punching shape can be customized according to customer requirements.
FBV-420 VFFS granular packing machine mainly consists of main packing machine, bag former, date printer, z-type elevator, multi-head scale, (vertical and horizontal) sealing and cutting device. Entire machine is controlled by PLC system to ensure precise bag making. Packing parameters are set and viewed conveniently via a touch screen. It can store multiple parameters, which can be recalled at any time without needing to be added again.
Multi-head scale packaging machine material is 304 stainless steel, strictly made as per CE and SGS certification demands. Parts that come into contact with materials are made of food-grade stainless steel, making them sturdy, durable, and easy to clean. Multi-head scale function: Through the collaborative calculation of multiple weighing units (usually 4-24 weighing heads), it can quickly and accurately weigh and fill.
Z-type elevator
4-head scale
Vertical Form Fill Seal
Multi-head scale granule packing machines are suitable for packaging granular products of different shapes, such as: potato chips, popcorn, nuts, biscuits, walnuts, jelly sachets, dried fruits, etc. Particle metering devices can be selected according to product characteristics: volumetric cup metering, multi-head scale.
Vertical granular packaging machine can be customized with different styles of bags, such as: pillow bags, gusset bags, and 3-side seal bags. Cutter shape and punching device can be customized according to customer requirements.
| Machine | FBV-720 VFFS washing powder packing machine with gusset |
| Packing speed | 10-50 bags/minute |
| Packing range | Width of bag: 150-350mm; Length of bag: 150-380mm |
| Width of film | 300-720mm |
| Power | 220v, 1 phase, 50hz, 4kw |
| Weight of packing system | 2000 kgs |
| Dimensions of packing system | 3180*200*3850mm |
As a professional packaging machinery manufacturer, Shanghai FU-BO Packaging Machinery Co., Ltd.
has well-equipped testing facilities, strong technical force, provide customers with a variety of packaging machinery solutions.
Shanghai FU-BO Packaging Machinery Co., Ltd. is a manufacturer of automatic packaging machinery with well-equipped testing facilities and strong technical force.
