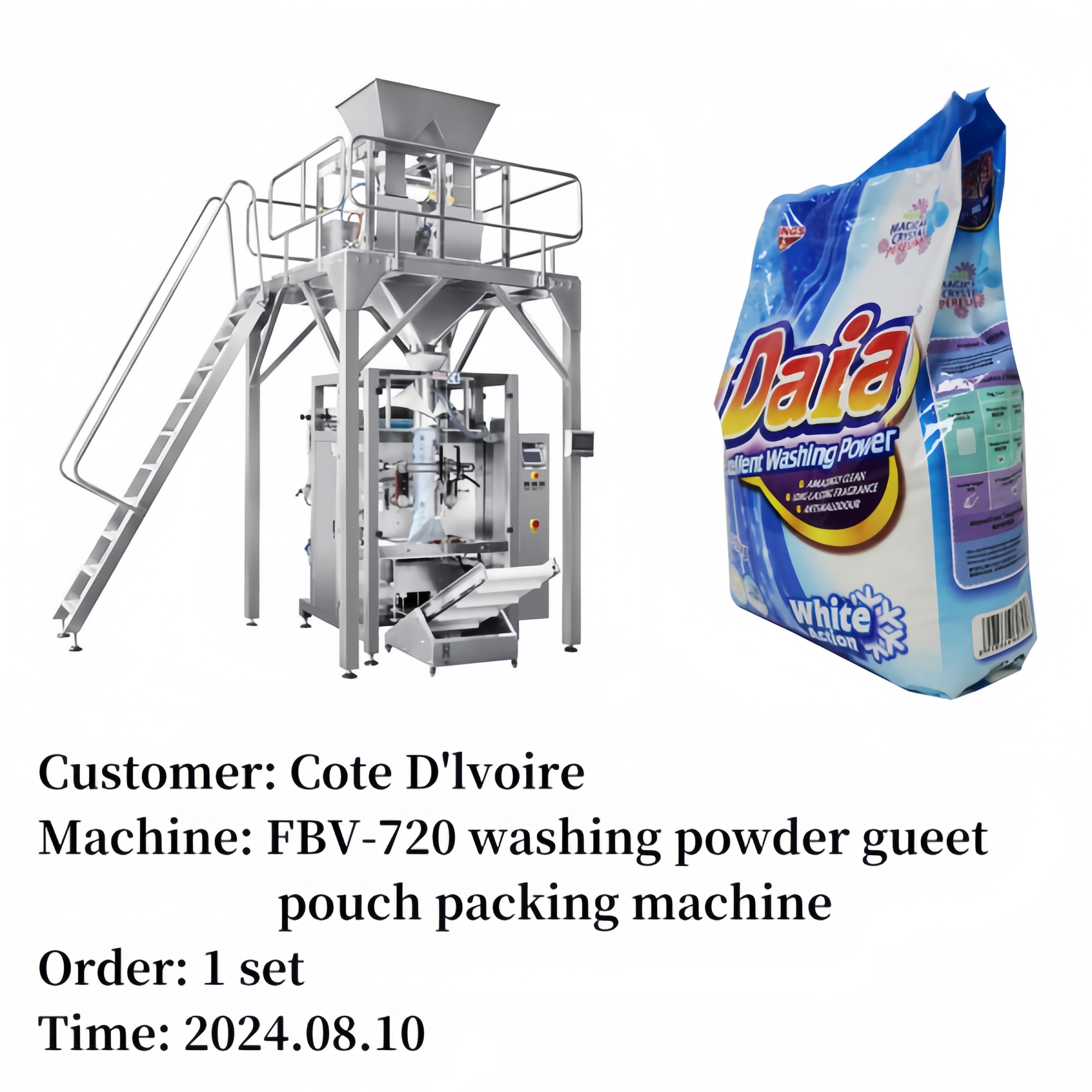

Automatic 4-head weigher packaging machine has been successfully exported to Côte d’Ivoire, Africa. It features gusseted bag making function and realizes automatic quantitative packaging for 2kg washing powder.
Granule packing machine adopts dual feeding structure to pack two kinds of small granules, suitable for candy, peanuts, dried fruits and beans. Adopts volumetric cup metering for accurate and stable feeding.
VFFS volumetric cup package machine is dedicated to plum candy packing. It realizes automatic feeding, metering, filling, bag forming, sealing and coding, featuring high efficiency, and tight sealing.
Three-side seal sachet packing machine is used for granular materials such as salt, sugar, rice. Equipped with replaceable volumetric cups, it adapts to various packing weights and achieves precise quantitative filling.

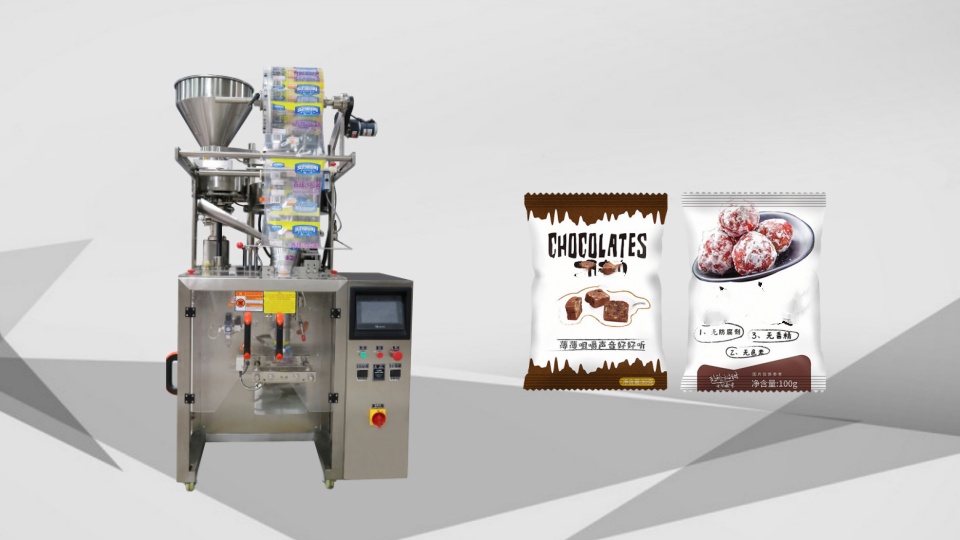

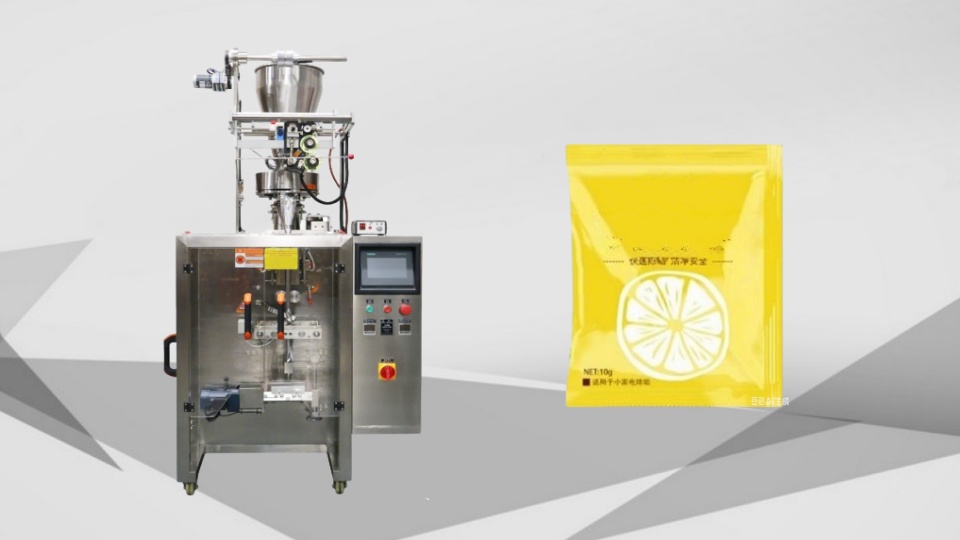

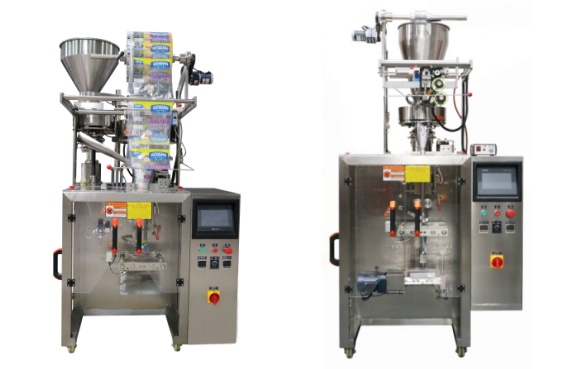

Vertical granular packaging machine is mainly composed of a main packaging unit, customizable volumetric filler cup, bag former, date coder, vertical sealing assembly, and horizontal sealing and cutting unit.
Once granular materials drop into the measuring cup, the built-in scraper levels off and removes excess material. The bottom of the measuring cup opens via mechanical drive to realize automatic quantitative filling.
All material contact parts are manufactured from food-grade stainless steel, fully complying with hygiene requirements for food and pharmaceutical production industries.

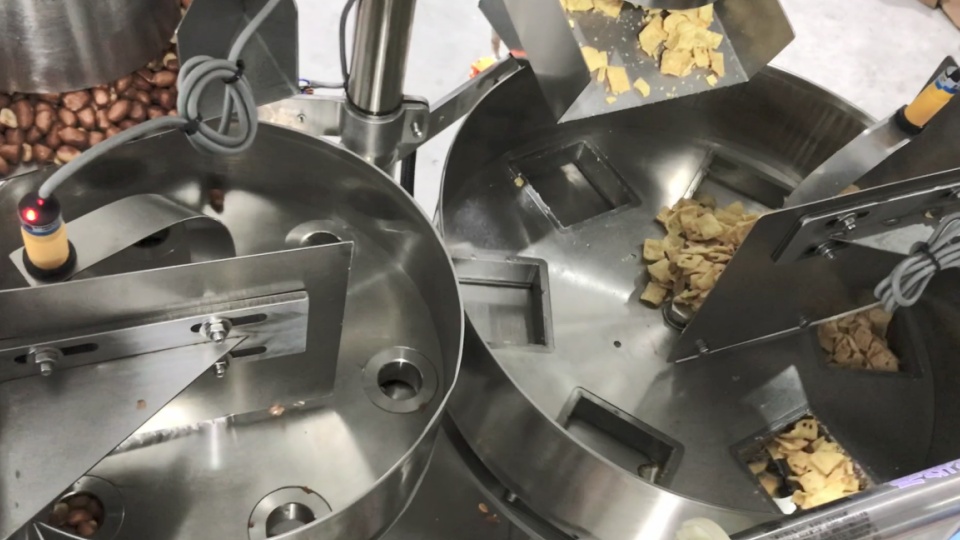

Volumetric cup

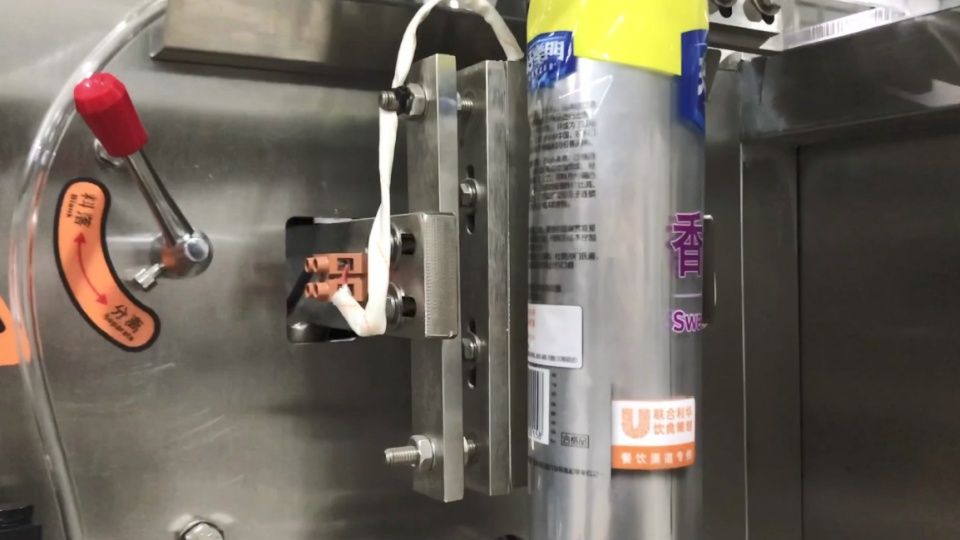

Vertical sealing

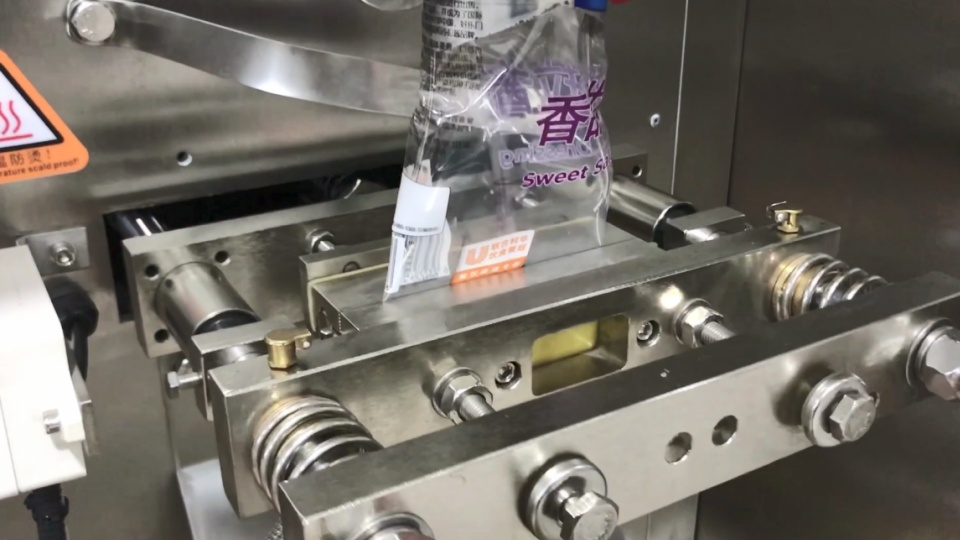

Horizontal sealing and cutting

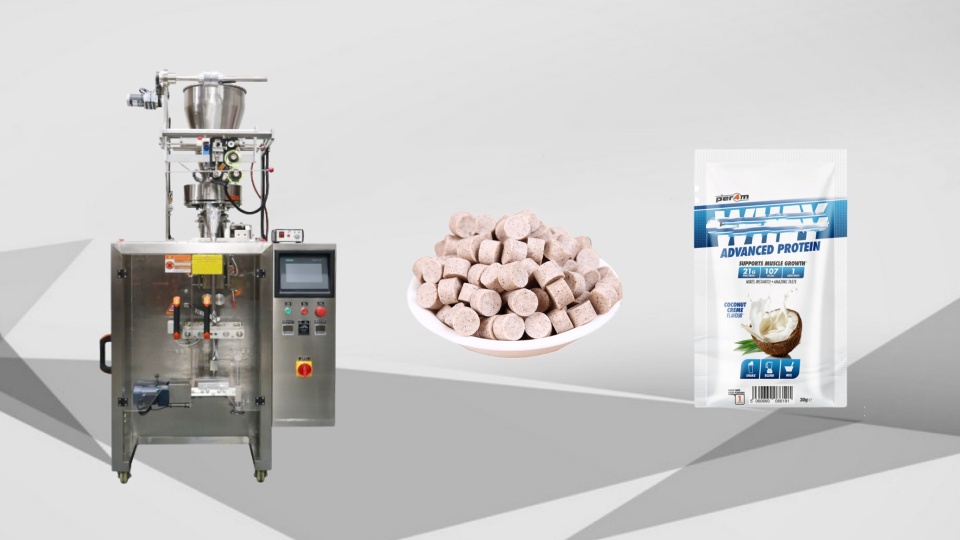

Vertical volumetric cup packaging machines are ideal for packaging small granular products, including nuts, sesame seeds, candy, rice, oatmeal, dried fruits, raisins, various seeds, chicken bouillon, salt and sugar.
Volumetric cup packing machines can produce pillow bag with zigzag. Alternatively, bag types can be customized according to customer requirements, such as: stick sachets, 3-side seal sachets, 4-side seal sachets, gusset bags, etc.
| Type of machine | FBV-300 VFFS packing machine |
| Packing speed/minute | 30-80 bags/minute |
| Packing dimension | Width: 20mm-150mm; Length: 30mm-180mm |
| Diameter of packge roll | Max 450mm |
| Power | 110v/220v/380v customized |
| Weight | 300 kgs/set |
| Size of machine | 1000*750*2000mm |
