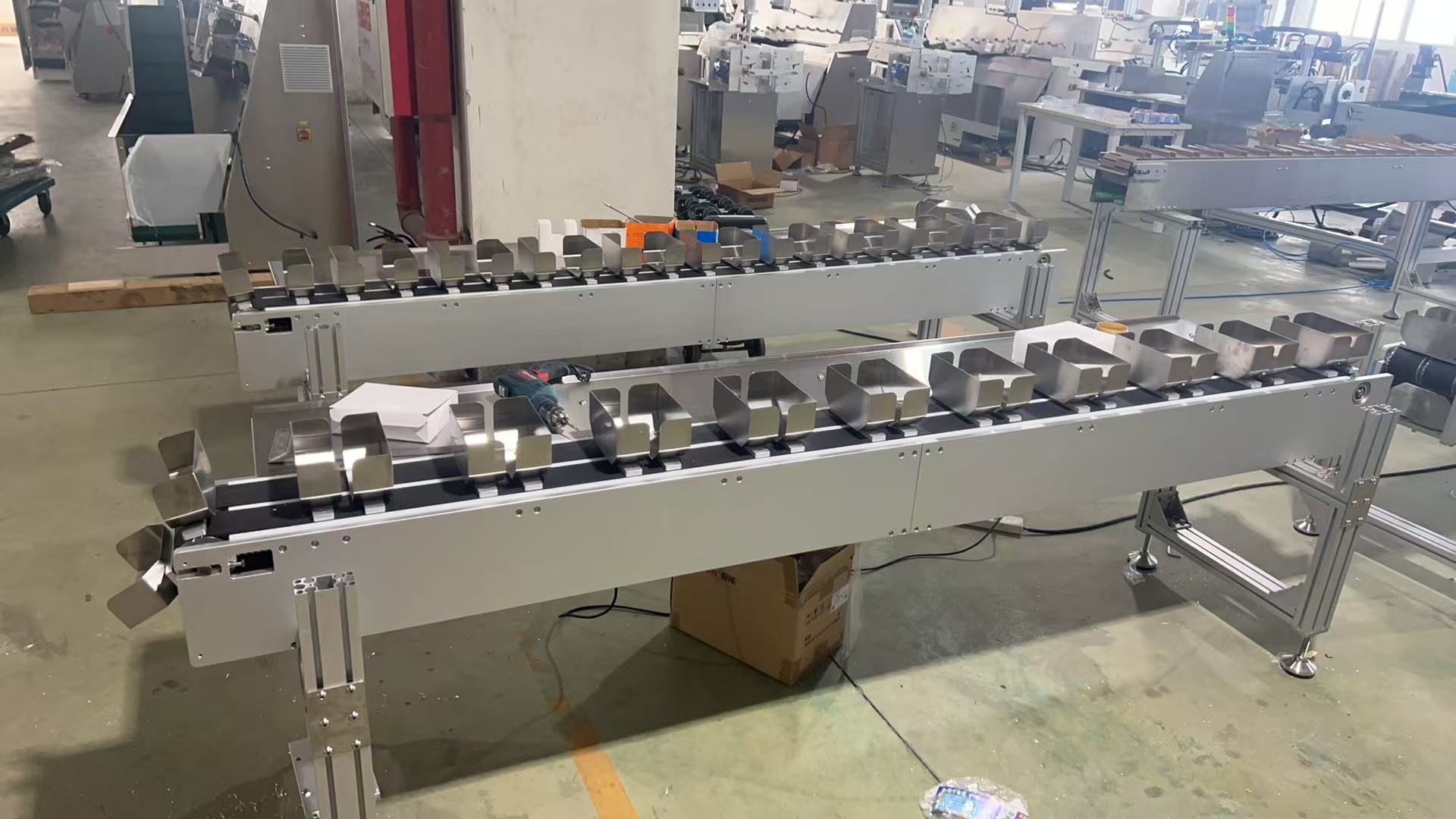

Wet cat food bag sorting machine: 1. Automatic sorting and output; 2. Removal of stacked bags; 3. Detection of bag orientation bag flipping; 4. Adjustment of bag orientation; 5. Counting and collecting bags; 6. Packing bags into boxes.

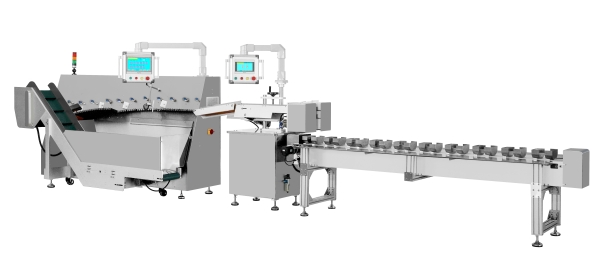

Sorting machine + customized rejector + counting collecting machine + premade bag packing machine. It is suit for the following products: snack sachets, rice bar sachets, 3/4-side seal sachets, etc.
VFFS double-line jelly bag packing machine can automatically complete the bag-making process, including feeding, metering and filling, bag forming, date printing, sealing, shape cutting, and finished product output.
FBV-50YD irregular shaped bag packing machine can automatically complete process such as feeding, bag forming, metering, date printing, filling, sealing, die-cutting, and counting.
VFFS jelly triangle sachet packing machine features functions such as forming, filling, sealing, die-cutting, date printing, in-can mixing, and heating. It offers high packaging efficiency and excellent bag sealing.
4-head scale packaging machine has been exported to Côte d'Ivoire, Africa, and can produce corner-insertion bags. It can package 2kg of powders such as: washing powder, milk powder, and wheat flour.
Automatic coconut milk packing machine can automatically complete feeding, metering, filling, bag forming, sealing, and finished product output. Precise measurement of products at high temperatures can efficitively prevent secondary contamination.
Automatic packing machines are suitable for packaging 1-10kg of paste-like products: butter, salad dressing, chocolate sauce, meat paste. (storage tanks and pumps are customized according to different products.)
Vacuum bag packaging machine is suit for packing butter, chocolate sauce, ketchup, meat paste, etc. We can customize bag size and shape according to customer requirements and remove air from the bag.
Automatic liquid packing machines can be composed of main packing machine, liquid/paste pump, film stacking, bag former, sealing and cutting unit, and conveyor belt. Squeeze-type venting method and leak-proof design can be adopted according to customer requirements. Reduces air inside the bag, ensuring a clean and secure seal.
This machine adopts a high-precision filling system with a packaging error within 1% (the specific error depends on the product). System is equipped with a CIP system, which can automatically clean the storage hopper, spiral filling pipeline, and discharge silos.
Liquid hopper with heating
Bag forming
Horizontal sealing and cutting
Automatic paste/liquid packaging machine is widely used in the chemical industry, pharmaceutical industry and food industry. It can be used to package fruit sauce, chocolate sauce, salad dressing, chili sauce, peanut oil, medicine liquid, bean paste, butter and other products.
Packing machines can produce different types of bags: pillow bags, irregular shape bags, etc. It can be equipped with different types of cutters, such as: flat cutter, toothed cutter, rounded corner cutter, etc. Suitable packing films can be selected based on the characteristics of the product, such as: OPP, PET, PA, PE, CPP, and metallized film.
| Model | FBV-600 PACKING MACHINE |
| Making bag size | (L)150-480mm; (W)100-250mm |
| Film width | 220-560mm |
| Packing material | OPP, PE, PVC, OPP/CPP, OPP/PE, PET/VMPET/PE |
| Packing speed | 4-15 bags/min |
| Packing volume | Max.5000cc |
| Sealing type | back sealing |
| Power supply | AC 380V 50Hz |
| Power | 4.5kw |
| Air pressure | 0.6Mpa |
| Air consumption | 0.006m³/min |
| Dimension | L4200*W1100*H1587mm |
| Weight | 720kg |
