Wet Cat Food Bag Sorting Machine: 1. Automatic sorting and output; 2. Removal of stacked bags; 3. Bag orientation detection and bag flipping; 4. Bag orientation adjustment; 5. Bag counting and collection; 6. Bag packing into cartons.

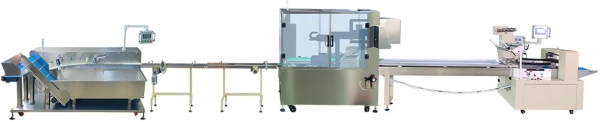

Sorting machine + customized rejector + counting collecting machine + premade bag packing machine. It is suit for the following products: snack sachets, rice bar sachets, 3/4-side seal sachets, etc.
VFFS double-line jelly bag packing machine can automatically complete the bag-making process, including feeding, metering and filling, bag forming, date printing, sealing, shape cutting, and finished product output.
FBV-50YD irregular shaped bag packing machine can automatically complete process such as feeding, bag forming, metering, date printing, filling, sealing, die-cutting, and counting.
VFFS jelly triangle sachet packing machine features functions such as forming, filling, sealing, die-cutting, date printing, in-can mixing, and heating. It offers high packaging efficiency and excellent bag sealing.
Automatic 4-head weigher packaging machine has been successfully exported to Côte d’Ivoire, Africa. It features gusseted bag making function and realizes automatic quantitative packaging for 2kg washing powder.
Premade bag filling machine + drinking straw applicator. It can be used to fill 200ml of juice, and straws can be attached to the doypack pouch according to customer requirements.
Premade bag seasoning sauce packing machine can automatically complete bag picking, bag opening, mwtering, filling, coding, sealing, etc. (It is suit for packing sauce, salad dressing, fruit beverage, etc.)
2 sets of pre-made bag juice filling sealing machine have been exported to Vietnam. Suitable for different types of bags: stand-up pouches, 4-side seal bbags, irregular shape bags, etc.
The premade pouch filling and sealing machine mainly comprises a bag storage device, liquid/sauce pump, hopper, bag picking device, bag opening device, date printing device, top sealing device, and product discharge. Depending on the product characteristics, this machine can be equipped with different metering systems, including multi-head weighers, liquid pumps, and screw fillers.
Drinking straw applicator adopts a PLC automatic control system, which is easy to operate. It can automatically complete processes such as product conveying, straw conveying, straw cutting, straw gluing, and straw pasting. Straws can be attached to the surface of products such as cartons, bags, and plastic cups, ensuring a tight bond for easy use.
Drinking straw applicator
Top sealing
Dual filling heads
Premade pouch filling and sealing machine is suitable for packing liquid and paste products, including juice, chili sauce, butter, honey, ketchup, vinegar, salad dressing, coconut water, soybean sauce, yogurt, soy sauce and milk.
Customizable pouch types include stand-up zipper pouches, 3-side sealed pouches, 4-side sealed pouches, stand-up pouches, and special-shaped pouches. Main machine structure can be customized to adapt to various pouch styles and sizes.
| Type | FBG-180 | FBG-210 | FBG-240 | FBG-330 |
| Packing Range | 60×80mm & 180×310mm | 90×110mm & 210×310mm | 100×120mm & 240×320mm | 140×180mm & 320×410mm |
| Max volume | 1200ml | 1600ml | 2000ml | 4000ml |
| Speed | 30-60ppm | 30-60ppm | 30-60ppm | 5-15ppm |
| Power | 1.8kw | 2.8kw | 3.4kw | 2.5kw |
| Dimension | 1900mm(L)*970mm(W)*1390mm(H) | 2700mm(L)*970mm(W)*1400mm(H) | 3100mm(L)*1010mm(W)*1400mm(H) | 1800mm(L)*1020mm(W)*1300mm(H) |
| weight | 700kg | 900kg | 1800kg | 700kg |
As a professional packaging machinery manufacturer, Shanghai FU-BO Packaging Machinery Co., Ltd.
has well-equipped testing facilities, strong technical force, provide customers with a variety of packaging machinery solutions.
Shanghai FU-BO Packaging Machinery Co., Ltd. is a manufacturer of automatic packaging machinery with well-equipped testing facilities and strong technical force.
